Servicing Cooling System

Checking Cooling System

1. Park machine safely. (See Parking Safely in Safety Section.)

2. Allow engine to cool.

3. Raise hood.

4.

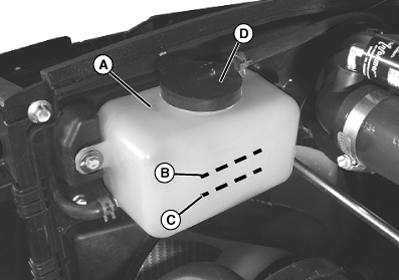

   LVAL38319-UN-21AUG12

   A - Recovery Tank

   B - Full Line

   C - Low Line

   D - Tank Cap

   Check recovery tank (A) coolant level:
   • If engine is warm, coolant level should be between the FULL line (B) and the LOW line (C).
   • If engine is cold, coolant level should be at the LOW line (C) on the recovery tank.



---




5. Remove recovery tank cap (D) if needed to add coolant.

6. Add recommended coolant.

7. Install recovery tank cap.

8. Lower hood.

Draining Cooling System

1. Park machine safely. (See Parking Safely.)

2. Allow engine to cool.

3. Raise hood.

4.

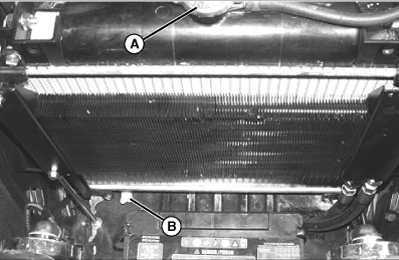

   LVAL38320-UN-21AUG12

   A - Radiator Cap

   B - Drain Plug

   Slowly open radiator cap (A) to the first stop to release all pressure.

---




5. Close radiator cap tightly.

6. Remove radiator screen, remove radiator drain plug (B) and drain coolant.

7.

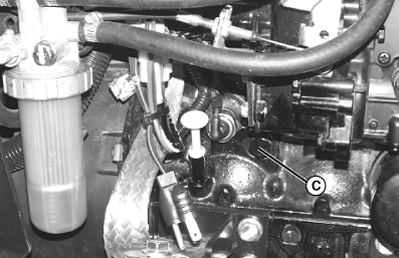

   LVAL38321-UN-21AUG12

   1023E shown. 1025R similar.

   Remove engine block drain plug (C) and drain all coolant.

---




8. When coolant drains from the recovery tank, remove the radiator cap.

9. Install radiator and install engine block drain plugs.

10. Flush cooling system.

Flushing Cooling System

1. Fill cooling system with clean water and John Deere Cooling System Cleaner, or John Deere Cooling System Quick Flush or an equivalent. Follow directions on the container.

2. Install and tighten radiator cap.

3. Start and run engine until it reaches operating temperature.

4. Stop engine.

5. Remove radiator and engine block drain plugs.

6. Drain cooling system immediately before rust and dirt settle.

7. Install radiator and engine block drain plugs.

Filling Cooling System

IMPORTANT: Avoid damage! Using incorrect coolant mixture can damage the radiator:

• Do not operate engine with plain water.
• Do not exceed a 50% mixture of coolant and water.
• Aluminum engine blocks and radiators require approved ethylene-glycol based antifreeze.

NOTE: John Deere COOL-GARD coolant is recommended when adding new coolant to the cooling system.

Follow the directions on the container for correct mixture ratio.

1. Allow radiator to cool.

2. Fill cooling system.

   • Cooling system capacity is 3.7 L (3.9 qt).



3. Install and tighten radiator cap.

4. Run engine until it reaches operating temperature.

5. Stop engine.

6. Check recovery tank coolant level and add coolant if necessary

7. Lower hood.
