Checking Radiator Hoses and Clamps

1. Park machine safely. (See Parking Safely in Safety Section.)

2. Raise hood.

3. Remove right side panel.

4. NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.

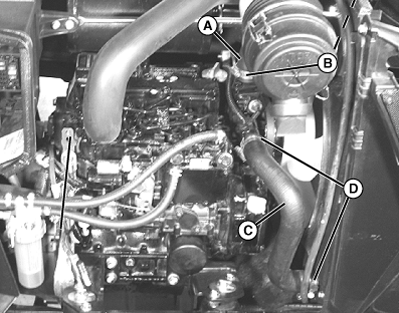

   LVAL38322-UN-21AUG12

   A - Hose

   B - Clamps

   C - Hose

   D - Clamps

   Check upper radiator hose (A) for damage or cracking. Replace if necessary.

---




5. Check hose clamps (B) as needed.

6. Check lower radiator hose (C) for damage or cracking. Replace if necessary.

7. Check hose clamps (D) as needed.

8. Install right side panel.

9. Lower hood.
