Cleaning Radiator Cooling Screen and Fins

CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance.

  • Clear work area of bystanders.
  • Wear eye protection when using compressed air for cleaning purposes.
  • Reduce compressed air pressure to 210 kPa (30 psi).

IMPORTANT: Avoid damage! The radiator cooling screen must be clean to prevent engine from overheating and to allow adequate air intake.


Cleaning Radiator Cooling Screen

IMPORTANT: Avoid damage! Reduced air intake can cause overheating. Keep radiator cooling fins clean.

Do not use pressure washers to clean radiator cooling fins. The force produced by pressure washers will damage the radiator and cooling fins.

Reduce compressed air pressure to 210 kPa (30 psi) when cleaning radiator and cooling fins. Spray compressed air straight into radiator. Do not spray radiator on an angle or cooling fins will be bent.

  1. Park machine safely. (See Parking Safely in Safety Section.) Allow engine to cool.

  2. Raise hood.

  3. LVAL38323
    LVAL38323-UN-21AUG12

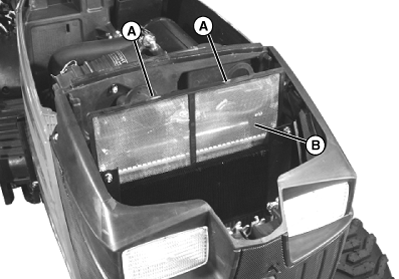

    Screen shown partially removed.

    Lift tabs (A) to slide radiator screen (B) up out of retaining slot.


  4. Clean screen with compressed air, brush or cloth.

  5. Install screen in front of radiator.

  6. Lower hood.


Cleaning Radiator Cooling Fins

IMPORTANT: Avoid damage! Reduced air intake can cause overheating. Keep radiator cooling fins clean.

Do not use pressure washers to clean radiator cooling fins. The force produced by pressure washers will damage the radiator and cooling fins.

Reduce compressed air pressure to 210 kPa (30 psi) when cleaning radiator and cooling fins. Spray compressed air straight into radiator. Do not spray radiator on an angle or cooling fins will be bent.

  1. Park machine safely. (See Parking Safely in Safety Section.) Allow engine to cool.

  2. Raise hood.

  3. Remove radiator screen.

  4. LVAL38324
    LVAL38324-UN-21AUG12

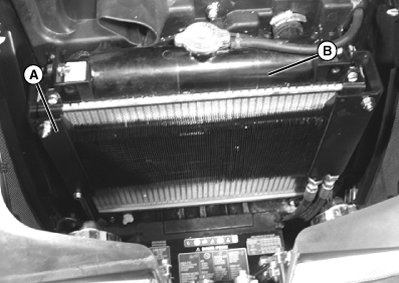

    A - Radiator Front

    B - Radiator Rear

    Remove all dirt and debris from fins at front (A) and rear of radiator including fan shroud using compressed air or water.


  5. Install radiator screen.

  6. Lower hood.

KN52281,1003F16-19-20120823
