Replacing Worklight Bulb (1025R)

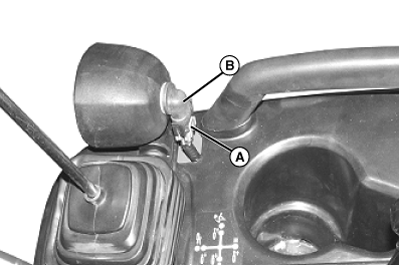

LVAL38356-UN-21AUG12

A - Connector

B - Base

1. Remove connector (A) from base of bulb.

2. Rotate base (B) counterclockwise to remove bulb assembly from housing.

3. Insert new bulb in housing and turn clockwise to secure.

4. Insert connector into base of bulb.

5. Check operation of worklights.
