Raising and Lowering Hood

Raising

1. Park machine safely. (See Parking Safely in Safety Section.)

2.

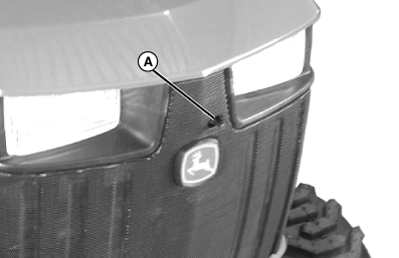

   LVAL38361-UN-21AUG12

   A - Release Lever

   Push release lever (A) sideways to open hood.

---




3.

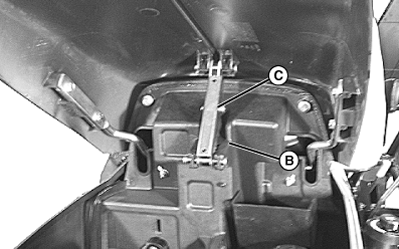

   LVAL38362-UN-21AUG12

   B - Pinch Point

   C - Hood Support

   Raise hood until latch support bracket engages.

---

Lowering

1. Lift hood slightly to remove weight on latch support bracket.

2. Pull center of support bracket (C) toward the front of the machine to release and slowly lower hood.

3. Gently push down on both sides of front of hood to lock latch.
