Removing and Installing Side Panels

Removing

1. Park machine safely. (See Parking Safely in Safety Section.)

2. Raise hood.

3.

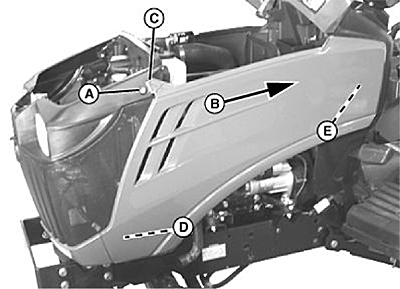

   LVAL38363-UN-07NOV12

   Left side shown. Right side is the same.

   A - Bolt

   B - Rear Of Machine

   C - Top

   D - Front

   E - Rear

   Remove bolt (A) and nut, retaining the side panel to machine.

---




4. Slide the side panel toward the rear (B) until the top (C), front (D) and rear (E) tabs clear their mounting slots in the machine. Remove the side panel.

Installing

1. Align the panel mounting tabs with the mating slots in the machine.

2. Slide the panel forward, install bolt (A) and nut to secure side panel.

3. Lower the hood.
