Operator Station Controls

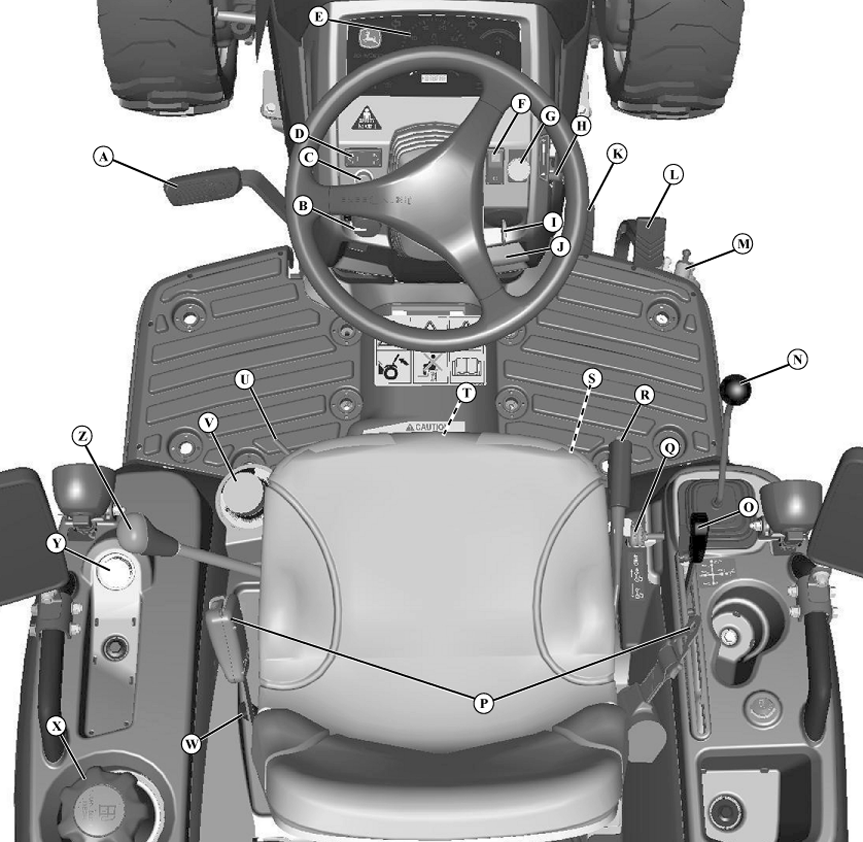

LVAL38760-UN-09OCT12

A - Brake Pedal

B - Light Control Switch

C - Horn

D - Turn Signal Switch

E - Instrument Cluster

F - Hazard Switch

G - Power Take Off/Reverse Implement Option (PTO/RIO) Switch

H - Engine Speed Hand Throttle

I - Ignition Key Switch

J - Cruise Control Lever

K - Forward Travel Pedal

L - Reverse Travel Pedal

M - Selective Control Valve (SCV) Couplers

N - Selective Control Valve (SCV) Lever

O - Rockshaft Control Lever

P - Seat Belt

Q - Selective Control Valve (SCV) Lock Lever

R - Park Brake

S - Mechanical Front Wheel Drive (MFWD) Control Lever

T - Rate of Drop / Lock Valve

U - Operator Seat Adjustment Lever

V - Mower Deck Height Control

W - Power Take Off (PTO) Selector Lever

X - Fuel Gauge

Y - Fuel Filler Cap

Z - Transmission Range Shift Lever
