Adjusting Seat

  1. Sit on seat.

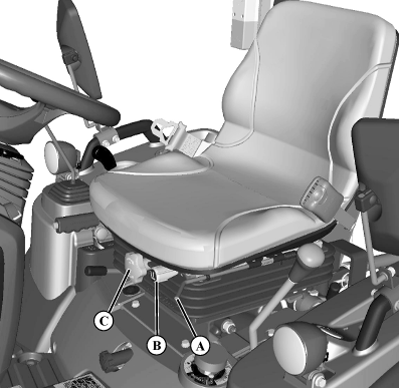

  2. LVAL38762
    LVAL38762-UN-09OCT12

    A - Seat Lever

    B - Seat Level Knob

    C - Seat Suspension Travel Knob

    Lift seat lever (A) up to unlock seat position.


  3. Slide seat forward or rearward to desired position where all controls can be easily reached.

  4. Release lever to lock seat in position.

  5. To adjust level of seat, turn knob (B) clockwise to lower seat height - for desired comfort level.


Adjusting Seat For Operator Weight

  • Turn knob (C) clockwise or counterclockwise to reach desired suspension travel for operator weight. Suspension should not bottom out when properly adjusted.

RH75544,0000F3D-19-20121010
