Using Light Switch

CAUTION: Do not operate on roads with light switch in the field position. Rear work lights may blind or confuse operators of oncoming vehicles.

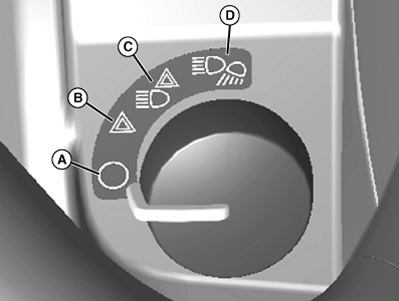

LVAL38260-UN-21AUG12

A - All Lights Off

B - Park Position: rear/brake lights, position lights and license plate light on.

C - Road Position: headlights, rear/brake lights, position lights and license plate light on.

D - Field Position: headlights, rear/brake lights and optional working lights on.

With the key switch in the off position, you can view the hourmeter in the instrument panel by turning the light switch to (B) or (C) position.
