Using Park Brake

Locking Park Brake:

CAUTION: Avoid Injury! Always lock park brake and move transmission range shift lever to a position other than N (neutral) before leaving machine unattended. Transmissions will not prevent machine motion without the park brake locked.

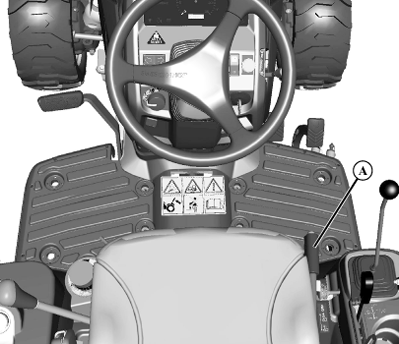

LVAL38765-UN-09OCT12

A - Park Brake Lever

Unlocking Park Brake:

1. Pull up slightly on park brake lever while depressing the release button. Push park brake lever down to the unlocked position. Park brake light should be off.
