Using Throttle

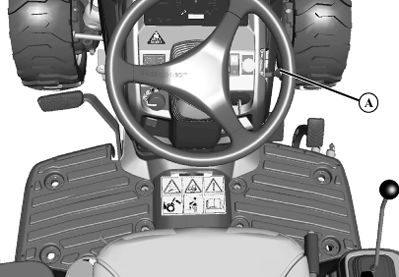

LVAL38805
LVAL38805-UN-10OCT12

A - Throttle Lever

Use the throttle to change engine speeds. Use the throttle in conjunction with the tachometer to set engine speeds.

  • Increase Engine Speed - Push throttle lever (A) towards the front of the machine.
  • Decrease Engine Speed - Pull throttle lever (A) towards rear of the machine.

    ItemMeasurementSpecification
    Engine/Tachometer Speeds:
    Low IdleSpeed1575 rpm
    RatedSpeed3200 rpm
    Fast Idle 3370 ± 50 rpm
