Checking Air Restriction Indicator (1026R only)

1. Park the machine safely. (See Parking Safely in Safety Section.)

2. Raise hood.

3.

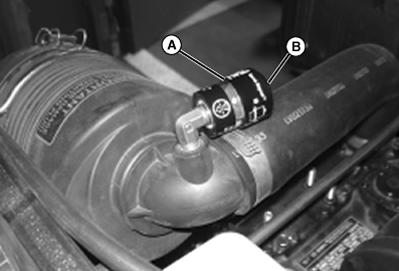

   LVAL38313-UN-21AUG12

   A - Service Window

   B - Indicator Housing

   Check the service window (A) on the indicator.
   • Change the air filter if the service window is red.
   • Press the top of the indicator housing (B) to reset the indicator after service.



---




4. Lower hood.
