Replacing Headlight Bulb

IMPORTANT: Avoid damage! Do not touch glass headlight bulb with bare skin or bulb may fail prematurely. Use gloves or a cloth when inspecting or replacing the bulb.

  1. Park machine safely. (See Parking Safely in Safety Section.)

  2. Raise hood.

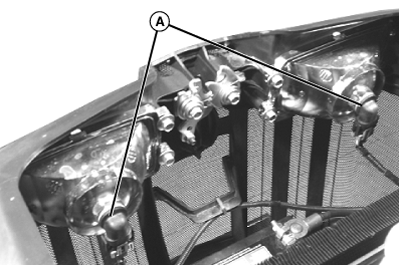

  3. LVAL38353
    LVAL38353-UN-21AUG12

    A - Base of Bulb

    Remove connector from base of bulb (A).


  4. Rotate base counterclockwise to remove bulb assembly from housing.

  5. Insert new bulb in housing and turn clockwise to secure.

  6. Insert connector into base of bulb.

  7. Lower hood.

  8. Check operation of headlights.
