Replacing Relays and Fuses

IMPORTANT: Avoid damage! The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

1. Park machine safely. (See Parking Safely in Safety Section.)

2. Raise hood and remove right side panel.

3. Identify relay or fuse.

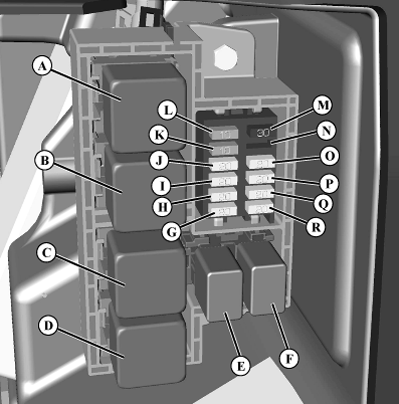

   LVAL38793-UN-09OCT12

---




4. Location	Circuit	Fuse Size
   A	Relay - Marker Light	N/A
   B	Relay - Glow Plug	N/A
   C	Relay - Starter	N/A
   D	Relay - Fuel Solenoid	N/A
   E	Relay - Trailer Power	N/A
   F	Relay - Brake Light	N/A
   G	Fuse - Power Outlet	20 amp
   H	Fuse - Headlights	20 amp
   I	Fuse - Work Lights (Option)	20 amp
   J	Fuse - Ignition Run Power	20 amp
   K	Fuse - Marker Lamps	10 amp
   L	Fuse - Marker Lights	10 amp
   M	Fuse - Cab Power (Option)	30 amp
   N	Empty
   O	Fuse - Ignition Switch	20 amp
   P	Fuse - Trailer Power	20 amp
   Q	Fuse - Light Switch	20 amp
   R	Fuse - Hazard Switch/Brake Lights	20 amp

   Pull defective relay or fuse from socket.

5. Push new relay or fuse or into socket.

6. Install right side panel and lower hood.
