Operating Cab (If Equipped)

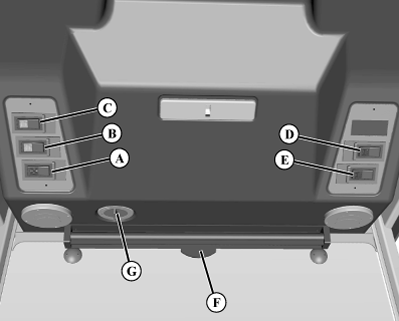

LVAL38779-UN-09OCT12

A — Beacon Light Switch - This switch turns on the beacon light.

B — Windshield Wiper Switch - This switch turns on the windshield wiper.

C — Heater Switch - This switch turns on the heater.

D — Rear Work Light Switch (Optional Kit) - This switch turns on the rear work light (optional kit).

E — Front Work Light Switch - This switch turns on the front work lights.

F — Sunshade - Lower this shade to deflect light from your line of view.

G — Temperature Control (For Heater) - Turn this control clockwise to turn down heat and counterclockwise to turn up heat.

Operating Loader When Cab is Installed on Tractor

IMPORTANT: Avoid Damage! Due to possible interference between front windshield and loader booms, front windshield should remain closed when operating front end loader.
