Lifting Points for Jacking up the Tractor

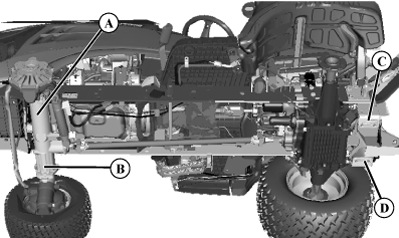

The illustrations show the recommended lifting points for jacking up the tractor. Use a stable lifting jack with sufficient lifting force.

LVAL38796-UN-09OCT12

A — Raise left end of axle at this point to remove left front wheel.

B — Raise right end of axle at this point to remove right front wheel.

C — Raise left rear of tractor at this point to remove left rear wheel.

D — Raise right rear of tractor at this point to remove right wheel.

LVAL38797-UN-09OCT12

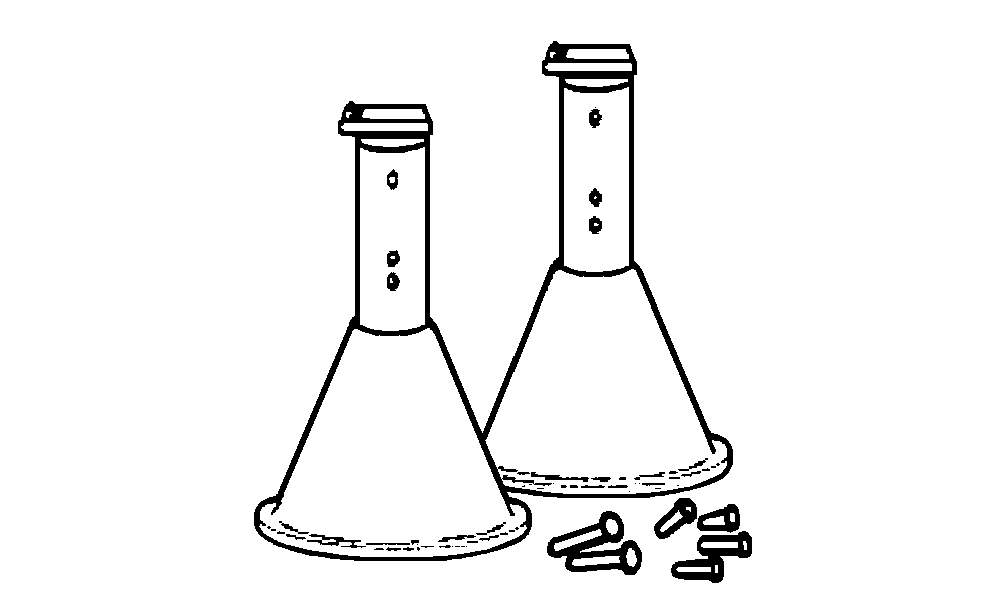

Jack Stands JT02043 and JT02044

JT02043 - Jack Stand, 482mm to 736mm (19 in. to 29 in.)

JT02044 - Jack Stand, 863mm to 1117mm (34 in. to 44 in.)

CAUTION: Avoid injury! Use approved lifting equipment only.

Jack up tractor on firm, level ground only.

Before doing any further work on the tractor, first secure it using suitable jack stands. The special John Deere tools shown can be used for this purpose. These jack stands are available from your John Deere dealer.

LVAL38798-UN-09OCT12

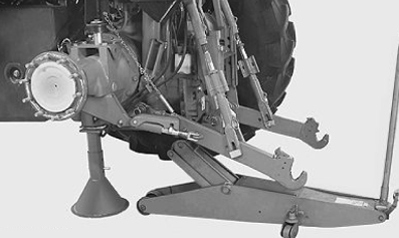

Example
