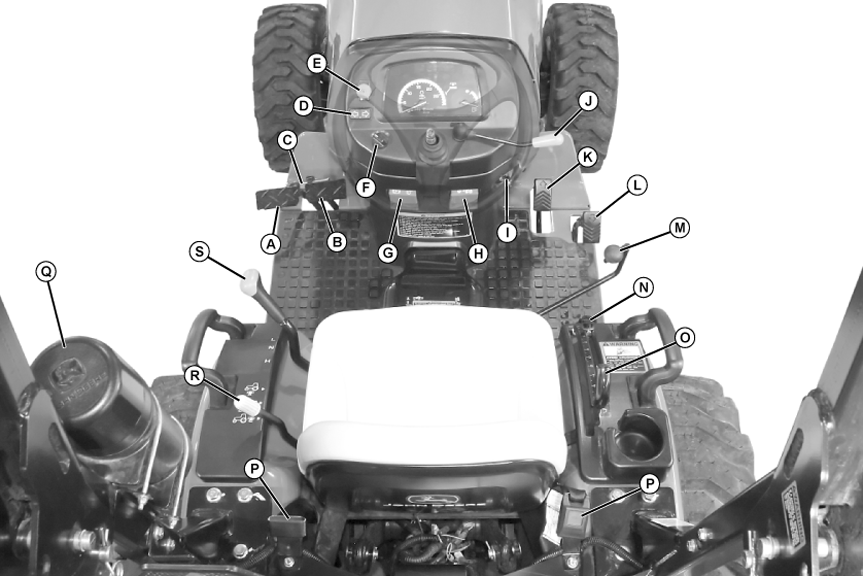

Operator Station Controls

LVAL38462-UN-18SEP12

2032R shown. 2025R similar.

A - Left Turn Brake Pedal

B - Right Turn Brake Pedal

C - Brake Pedal Latch

D - Turn Signal Switch

E - Power Take Off/Reverse Implement Option (PTO/RIO) Switch

F - Light Control/Warning Flasher Light Switch

G - Park Brake Lock

H - Cruise Control Lever

I - Ignition Key Switch

J - Engine Speed Hand Throttle

K - Forward Travel Pedal

L - Reverse Travel Pedal

M - Dual Selective Control Valve (SCV) Lever

N - Rockshaft Adjustable Depth Stop Knob

O - Rockshaft Control Lever

P - Seat Belt

Q - OM / Document Storage Canister

R - Power Take Off (PTO) Selector Lever

S - Transmission Range Shift Lever
