Floor Panel Controls

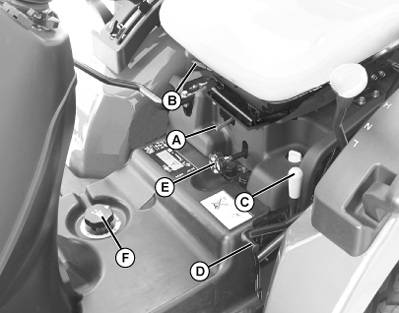

2025R

LVAL38463-UN-18SEP12

A - Selective Control Valve (SCV) Lock

B - Operator Seat Adjustment Lever

C - Mechanical Front Wheel Drive (MFWD) Control Lever

D - Differential Lock Pedal

E - Rockshaft Rate-of-Drop Control Knob

F - Mower Height Control Knob

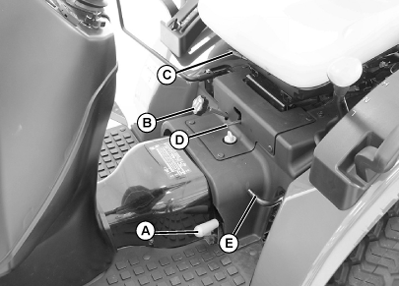

2032R

LVAL38464-UN-18SEP12

A - Mechanical Front Wheel Drive (MFWD) Control Lever

B - Rockshaft Rate-of-Drop Control Knob

C - Operator Seat Adjustment Lever

D - Selective Control Valve (SCV) Lock Lever

E - Differential Lock Pedal
