Using Fuel Shut-Off Valve

2025R

CAUTION: Close fuel shut-off valve when performing any type of engine service, during transport of the machine, and during storage.

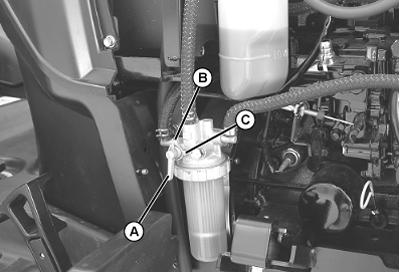

LVAL38470-UN-18SEP12

A - Fuel Shut-Off Valve Lever

B - Vertical Position

C - Horizontal Position

Open or close fuel shut-off valve lever (A) as required:

• Open Valve: Rotate valve lever pointer to the vertical position (B) marked “O”.
• Close Valve: Rotate valve lever pointer to the horizontal position (C) marked “C”.

2032R

CAUTION: Close fuel shut-off valve when performing any type of engine service, during transport of the machine, and during storage.

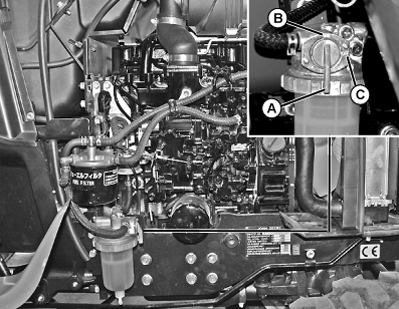

LVAL38471-UN-18SEP12

A - Fuel Shut-Off Valve Lever

B - Vertical Position

C - Horizontal Position

Open or close fuel shut-off valve lever (A) as required:

• Open Valve: Rotate valve lever pointer to the vertical position (B) marked “ON”.
• Close Valve: Rotate valve lever pointer to the horizontal position (C) marked “OFF”.
