Using Rear PTO (Operator Off Seat)

IMPORTANT: Use rear mounted equipment rated for 540 rpm. Do not operate mid or rear PTO over 540 RPM mark on tachometer.

NOTE: The mid-PTO is only operational with the operator on the seat.

Engaging the PTO

1. Sit on operator’s seat.

2. Lock the park brake.

3. Move the transmission range shift lever to the N (neutral) position.

4. NOTE: The starter will not crank if the PTO switch knob is in the engaged/on position.

   If the operator leaves the seat with the engine running and the mid-PTO engaged, the safety interlock system will stop the engine and all implements.

   Start the engine.

5. Set engine speed to 1500 rpm or less.

6.

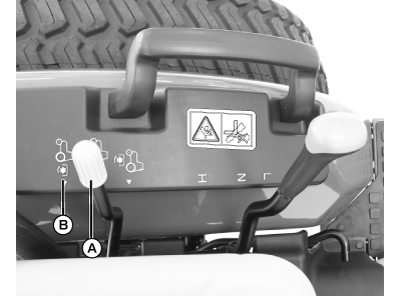

   LV17051-UN-15MAR13

   A - PTO Selector Lever

   B - Position

   Move the PTO selector lever (A) to position (B) for rear PTO only.

---




7. Pull the PTO switch knob up to the engaged/on position.

8. • The instrument panel PTO engaged light (C) will illuminate when the PTO is engaged.




   LVAL38477-UN-18SEP12

   2025R shown

   Adjust the engine speed hand throttle forward to the desired speed for the implement used.

   NOTE: For 2025R machines, the PTO marker on the tachometer indicates engine speed for a standard 540 PTO.

   • 2025R: Mid PTO speed will be 2100 rpm at the 540 PTO marker (D) on the tachometer.



   NOTE:


   LVAL38478-UN-18SEP12

   2032R shown

   C - PTO Engaged Light

   D - PTO Marker

   E - PTO Marker

   For 2032R machines, the PTO marker on the tachometer indicates a standard 540 PTO at an engine speed of 2600 rpm.
   • 2032R: Mid PTO speed will be 2100 rpm at the 540 PTO marker (E) on the tachometer.



   NOTE: The PTO marker on the tachometer indicates engine speed for a standard 540 PTO.

---

Disengaging the PTO

1. Adjust engine rpm to slow idle.

2. Push the PTO switch knob down to the disengaged/off position.
