Using Dual Selective Control Valve Lever (2032R)

LV17054-UN-15MAR13

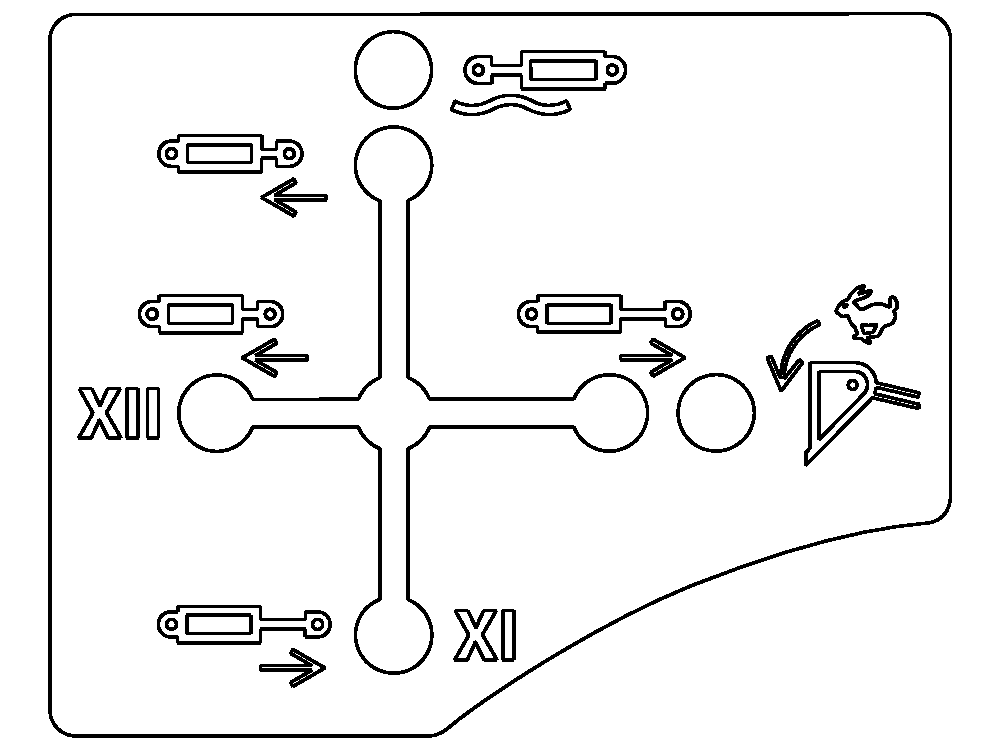

Standard Label Which May Not Exactly Match Label On Your Machine.

The label installed on the machine next to the dual selective control valve (SCV) lever shows the different lever positions.

Lever positions numbered 1-4 on the label match hydraulic line couplers numbered 1-4 on the label installed on the machine near the couplers. Moving the lever to position 1 will supply fluid to coupler 1 and return fluid through coupler 2 and so forth.

Lever Position	Fluid Supply	Fluid Return
Left to position 1	1	2
Right to position 2	2	1
Forward to position 3	3	4
Rearward to position 4	4	3

Move the lever to the full right detent or “regen” position for faster loader bucket dumping.

Move the lever to the full forward or “float” position to remove pressure in both lines 3 and 4 and allow fluid to flow back and forth between the lines. The lever may be left in the “float” position.
