Using Selective Control Valve (SCV) Lock Lever

2025R

LVAL38501-UN-18SEP12

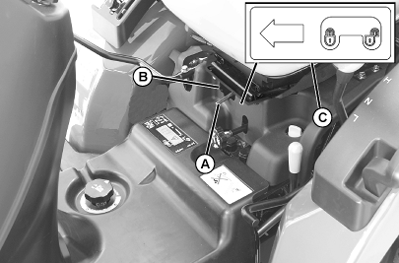

SCV Lock Lever Shown In The Unlocked Position.

A - Lock Lever

B - Upper Right Position

C - Label

• Move lock lever (A) to the down position, as shown, to allow SCV lever movement in all directions. Operation of the SCV is unlocked.
• Move lock lever (A) to upper right position (B) to prohibit SCV lever movement in all directions. Operation of the SCV is locked.
• Operation of the lock lever is indicated on label (C).

2032R

LVAL38502-UN-18SEP12

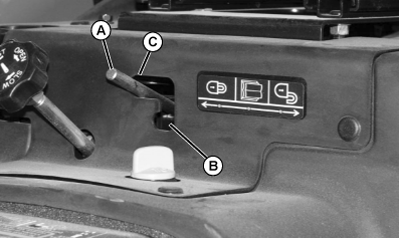

A - Lock Lever

B - Down Position

C - Upper Right Position

• Move lock lever (A) to the down position (B) to allow SCV lever movement in all directions. Operation of the SCV is unlocked.
• Move lock lever to upper right position (C) as shown to prohibit SCV lever movement in all directions. Operation of the SCV is locked.
