Locking Out Dual SCV Regen Function

It may be necessary to prevent the dual SCV lever from moving to the full right or “regen” position when operating some implements. See your implement operator’s manual.

  1. Park machine safely. (See Parking Safely in the Safety Section.)

  2. Remove right rear wheel. (See Removing and Installing Wheels in the Service Miscellaneous Section.)

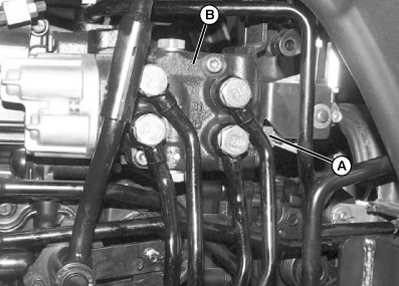

  3. LVAL38503
    LVAL38503-UN-18SEP12

    A - L-Shaped Bracket

    B - Selective Control Valve

    Move joystick back and forth to access locking pin on L-shaped bracket (A) on the front of the selective control valve (SCV) (B).

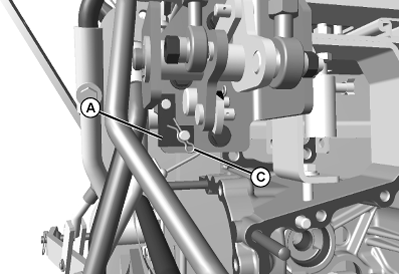

  4. LVAL38504
    LVAL38504-UN-18SEP12

    Shown With Rear Fender Platform And Closeout Panel Removed For Clarity Only.

    A - L-Shaped Bracket

    C - Locking Pin

    Remove locking pin (C), and L-shaped bracket (A) from pins.


  5. LVAL38505
    LVAL38505-UN-18SEP12

    A - L-Shaped Bracket

    C - Locking Pin

    Flip L-shaped bracket (A) inverted, and install back onto pins, as shown.


  6. Install locking pin (C).

  7. Install wheel. Tighten wheel bolts to specification.

    ItemMeasurementSpecification
    Wheel BoltsTorque115 N·m (85 lb-ft)

KN52281,10041F6-19-20121108
