Using Mower Height Control Knob (2025R)

LVAL38506-UN-18SEP12

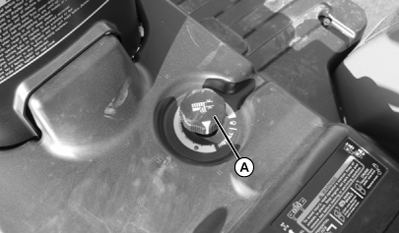

A - Height Control Knob

Use mower height control knob (A) to adjust mower cutting height, and lock mower lift kit rear draft arms in raised position. See your mower Operator’s manual for instructions.

IMPORTANT: To avoid machine damage when operating without a mower, fully raise the mower lift kit rear draft arms, and turn mower height control knob clockwise to highest setting to lock the arms in raised position.
