Raising and Lowering Roll-Over Protective Structure (ROPS)

CAUTION: Always wear seat belt when operating machine with folding Roll-Over Protective Structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

Lowering ROPS Crossbar

LVAL38510-UN-18SEP12

A - Spring Locking Pin

B - Drilled Pin

C - Rops Crossbar

1. Remove spring locking pin (A) and drilled pin (B) on each side of the ROPS.

2. Carefully lower ROPS crossbar (C).

3.

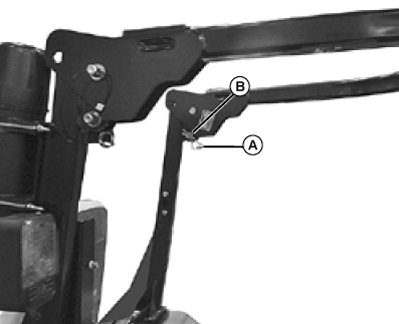

   LVAL38511-UN-18SEP12

   A - Spring Locking Pins

   B - Drilled Pins

   Install drilled pins (B) and spring locking pins (A).

---

Raising ROPS Crossbar

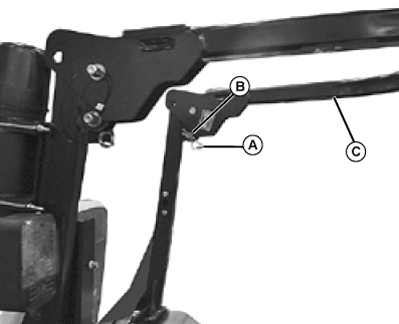

LVAL38512-UN-18SEP12

A - Spring Locking Pins

B - Drilled Pins

C - Rops Crossbar

1. Remove spring locking pins (A) and drilled pins (B) on each side of the ROPS.

2. Carefully raise ROPS crossbar (C) to the operating position.

3.

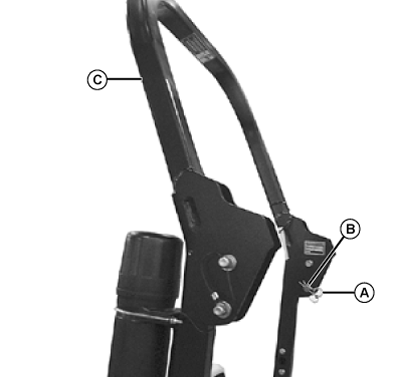

   LVAL38513-UN-18SEP12

   A - Spring Locking Pins

   B - Drilled Pins

   C - Crossbar

   Align crossbar bracket holes with support bracket holes on each side of the ROPS.

---




4. Install drilled pins (B) and spring locking pins (A) to lock crossbar (C) in the raised position.
