Lubricating Machine Grease Fittings

•

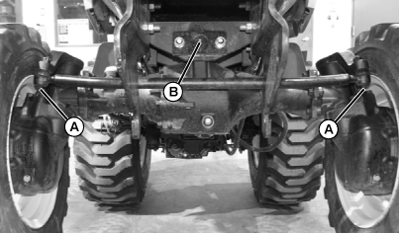

  LVAL38514-UN-18SEP12

  A - Tie Rod Ends

  B - Axle Pivot Pin

  Extremely Wet and Muddy Conditions - Lubricate machine grease fittings every 10 hours of operation or on a daily basis.

---

• All Other Conditions - Lubricate machine grease fittings every 50 hours of operation.

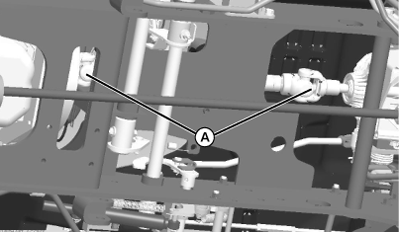

  LVAL38515-UN-18SEP12

  A - Drive Shaft U-Joint

---
