Lubricating Hydraulic Selective Control Valve (SCV) Linkage

2025R

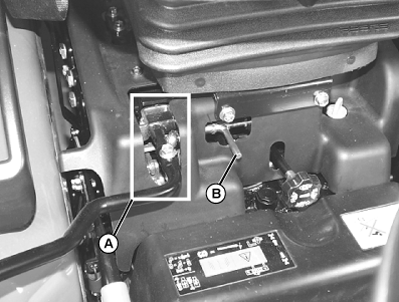

LVAL38516-UN-18SEP12

Shown with access cover removed.

A - Scv Linkage

B - Scv Lock Lever

• Lubricate SCV linkage (A) and SCV lock lever (B) with SUPER LUBE lubricant.

2032R

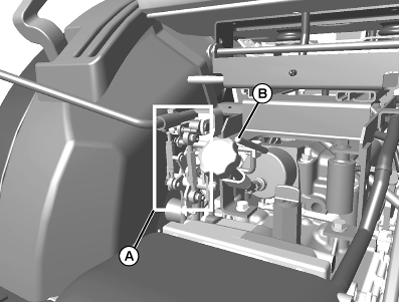

LVAL38517-UN-18SEP12

Shown With Access Cover Removed.

A - SCV Linkage

B - SCV Lock Lever

• Lubricate SCV linkage (A) and SCV lock lever (B) with SUPER LUBE lubricant.
