Cleaning Dust Unloading Valve

IMPORTANT: Do not operate engine without air cleaner element and rubber dust unloading valve installed.

  1. Park the vehicle safely. (See Parking Safely in the Safety Section.)

  2. Allow engine to cool.

  3. Access the engine compartment.

  4. LVAL38525
    LVAL38525-UN-20SEP12

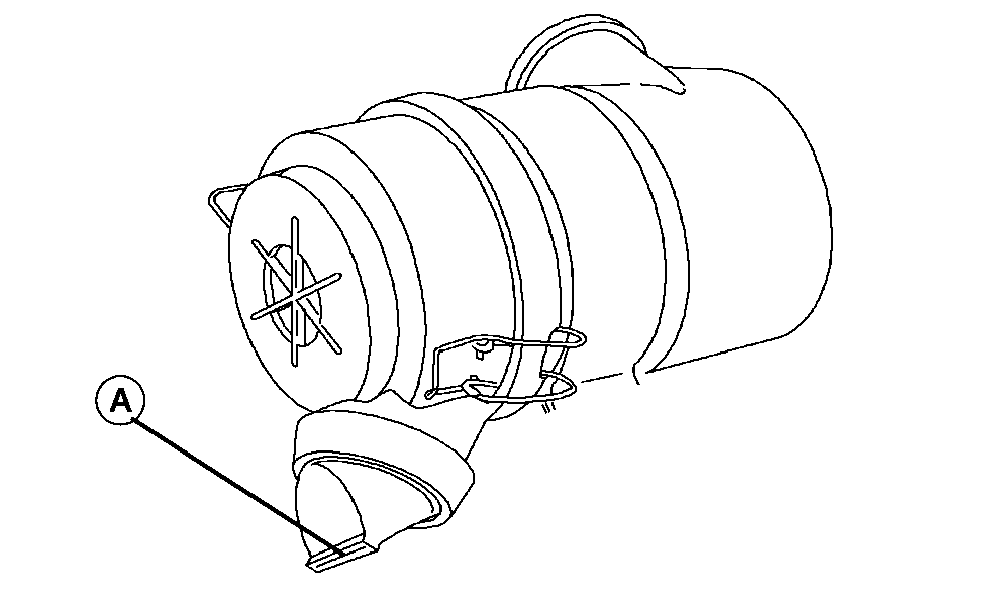

    A - Dust Unloading Valve

    Squeeze dust unloading valve (A) to clean. Remove and replace if damaged.



KN52281,1004219-19-20121108
