Checking Air Filter Intake Hoses and Clamps

  1. Park machine safely. (See Parking Safely in the Safety Section.)

  2. Raise hood.

  3. LVAL38529
    LVAL38529-UN-20SEP12

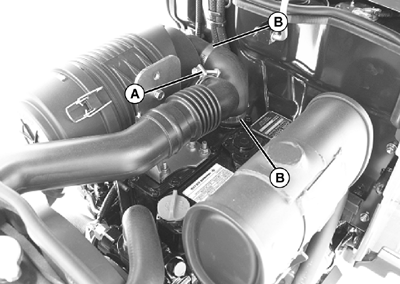

    2025R shown. 2032R similar

    A - Upper Air Intake Hose Clamp

    B - Lower Air Intake Hose Clamps

    Tighten upper air intake hose clamp (A) and lower air intake hose clamps (B).


  4. Lower hood.

KN52281,100421B-19-20121108
