Checking Radiator Hoses and Clamps

1. Park machine safely. (See Parking Safely in the Safety Section.)

2. Raise hood.

3. NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.

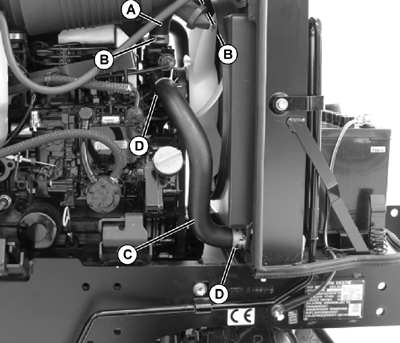

   LVAL38536-UN-20SEP12

   A - Upper Radiator Hose

   B - Hose Clamps

   C - Lower Radiator Hose

   D - Hose Clamps

   Check upper radiator hose (A) for damage or cracking. Replace if necessary.

---




4. Check hose clamps (B) as needed.

5. Check lower radiator hose (C) for damage or cracking. Replace if necessary.

6. Check hose clamps (D) as needed.

7. Lower hood.
