Checking Front Axle Oil Level

IMPORTANT: Allow oil one hour to settle before checking level to ensure accurate dipstick reading. Repeat oil level check after several hours of operation.

  1. Park machine safely. (See Parking Safely in the Safety Section.) Allow machine to cool down for at least one hour.

  2. IMPORTANT: Dirt and debris in oil may cause damage to the transaxle. Clean area around opening before removing dipstick.

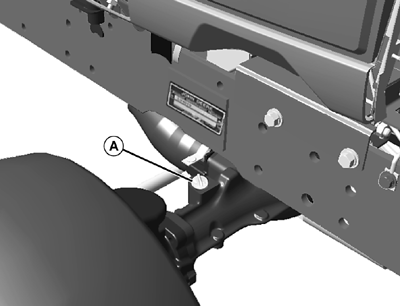

    LVAL38542
    LVAL38542-UN-20SEP12

    A - Dipstick

    Loosen and remove dipstick (A) located on right side of front axle.


  3. Wipe dipstick clean with a rag. Install and tighten dipstick.

  4. Remove dipstick. Oil level should be between high and low levels on dipstick. If oil level is low:

    1. Add GL-5 Gear Lubricant®—SAE 80W-90 or equivalent through dipstick fill opening until oil level is correct.

    2. Install and tighten dipstick.

  5. Check front axle oil level again after the first several hours of operation.

KN52281,1004227-19-20121108
