Transmission and Hydraulic Oil

IMPORTANT: Transaxle is filled with John Deere HY-Gard® (J20C) transmission oil at the factory. DO NOT mix oils.

LVAL38544-UN-20SEP12

Do not use type “F” automatic transmission fluid.

Use Hy-Gard® (J20C) or Low Viscosity Hy-Gard (J20D) transmission oil.

John Deere Low Viscosity Hy-Gard transmission oil is specially formulated for operation below -18°C (0)°F to provide maximum protection for the hydraulic system.

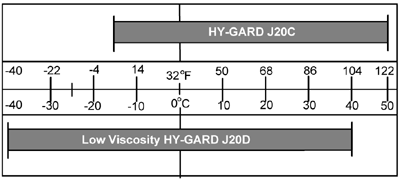

Use oil viscosity based on the expected air temperature range during the period between oil changes.

IMPORTANT: Use recommended oil only. Do not use engine oil or “Type F” automatic transmission fluid.

Other oils may be used if they meet John Deere standard JDM J20D or J20C.
