Replacing Fuses (2032R)

IMPORTANT: The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

  1. Park machine safely. (See Parking Safely in the Safety Section.)

  2. Raise hood.

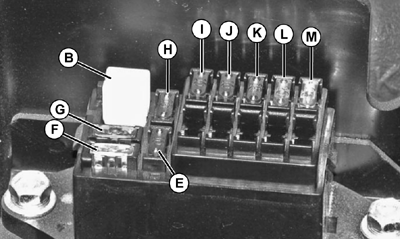

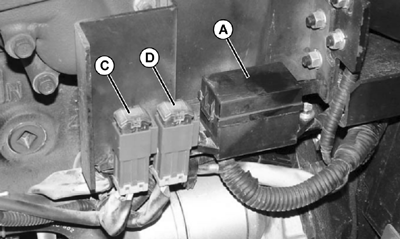

  3. LVAL38569
    LVAL38569-UN-20SEP12

    LVAL38570
    LVAL38570-UN-20SEP12

    A - Fuse Cover

    B - Fuse Removal Tool

    Remove cover (A).

    Location

    Circuit

    Fuse Size

    C

    Alternator

    80 amp

    D

    Main System

    80 amp

    E

    Spare Fuse

    10 amp

    F

    Spare Fuse

    25 amp

    G

    Spare Fuse

    20 amp

    H

    Spare Fuse

    15 amp

    I

    Emergency Flasher

    10 amp

    J

    Timer / Relay Unit

    10 amp

    K

    Headlight / Tail-light

    15 amp

    L

    12V Outlet

    15 amp

    M

    Headlight / Work Light

    25 amp


  4. Use fuse removal tool (B) to replace fuses as needed.
