Using Seat Belt

CAUTION: Avoid injury! Always wear seat belt when operating machine with non-folding roll-over protective structure (ROPS). Do not jump from machine if machine tips.


Fasten Seat Belt

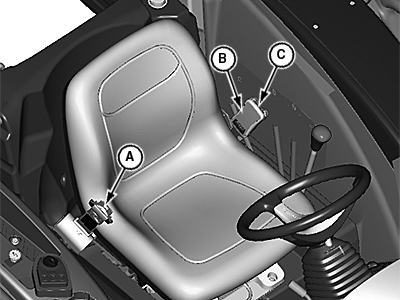

  1. LV17826
    LV17826-UN-20MAY13

    A - Seat Belt

    B - Latch

    C - Button

    Extend self-retracting seat belt (A) and insert into latch (B) on opposite side of seat. Seat belt is self-retracting and will automatically adjust to fit operator.

Release Belt

  1. Press red button (C) on latch (B) to release seat belt end.

KN52281,1004849-19-20130619
