Adjusting Tilt Steering Wheel

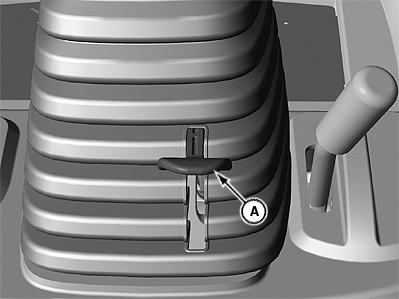

LV17830-UN-19NOV13

A - Tilt Steering Control Lever

CAUTION: Avoid injury! Do not attempt to adjust the steering wheel while the machine is moving. The operator can lose control of the machine.

• Stop the machine before adjusting the steering wheel.

• Lock the steering wheel in position before driving the machine.

1. Stop machine.

2. Pull tilt steering control lever (A) up to release steering wheel.

3. Adjust steering wheel to desired position.

4. Release tilt steering control lever to lock steering wheel in position.
