Using eThrottle—If Equipped

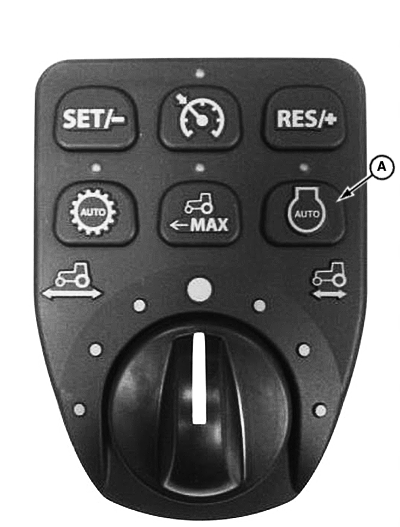

LV17696-UN-03MAY13

A - eThrottle Switch

CAUTION: Avoid injury! When eThrottle is engaged, tractor speed increases as travel pedals are depressed.

Using eThrottle enables the operator to increase or decrease the speed of the tractor by using the forward and reverse travel pedals. As depression of travel pedal increases, tractor speed increases.

NOTE: Using eThrottle is not recommended during PTO applications. With eThrottle engaged, constant PTO RPM cannot be maintained, which will result in reduced performance of implement.

Press eThrottle switch (A) to engage. An icon will illuminate on instrument panel.

Press again to disengage.
