Using Brake Pedals

Using Brake Pedals as Driving Brake

CAUTION: Avoid injury! Using unlocked brakes to stop the machine at high speeds may cause accidental turning or tipping.

• Lock pedals together when not using the turn brakes or for road travel or transport.
• Slow down before making a turn.

1.

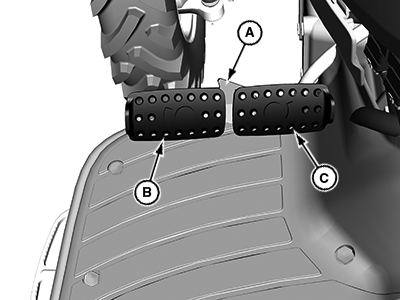

   LV17509-UN-19APR13

   A - Brake Pedal Lock

   B - Left Turn Brake Pedal

   C - Right Turn Brake Pedal

   Rotate brake pedal lock (A) counterclockwise until it locks into left turn brake pedal (B).

---




2. Depress either brake pedal to slow or stop the machine.

   • With latch down, brakes should stop machine in a straight line.



Using Brake Pedals to Assist in Turning

IMPORTANT: Avoid damage! Do not apply turn brakes while an implement is engaged with the ground. Damage to the 3-point hitch and implement may occur.

NOTE: Turn brake pedals can be used to make tighter turns and may reduce unnecessary backing.

Rotate brake pedal lock (A) clockwise until it stops against right turn brake pedal (C). The brake pedals will now function independently.

• To make a tighter left turn, depress left turn brake pedal (B) while turning to the left.
• To make a tighter right turn, depress right turn brake pedal (C) while turning to the right.
