Using Throttle

LV17832
LV17832-UN-21MAY13

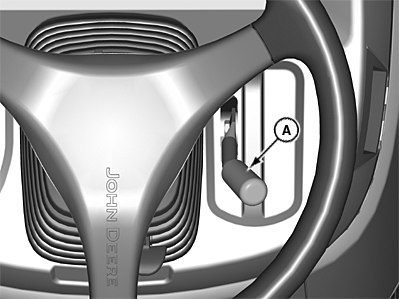

A - Engine Speed Hand Throttle

Use engine speed hand throttle to change engine speeds. Use engine speed hand throttle in conjunction with tachometer to set engine speeds.

  • Increase Engine Speed—Push engine speed hand throttle (A) toward front of machine.
  • Decrease Engine Speed—Pull engine speed hand throttle (A) toward rear of machine.

    ItemMeasurementSpecification
    Engine/Tachometer Speeds
    Low IdleSpeed950 rpm
    RatedSpeed2600 rpm
    High Idle 2750 ± 50 rpm

KN52281,100485A-19-20131028
