Checking Air Filter Intake Hose

NOTE: All air filter hoses are checked similarly.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Raise hood.

3. NOTE: Inspect air intake system hoses and connections each time the air filter is changed, or at a minimum yearly.

   Visually inspect hose for cracks and wear. Squeeze hose to check for deterioration. Hose should not be hard and brittle, or soft or swollen.

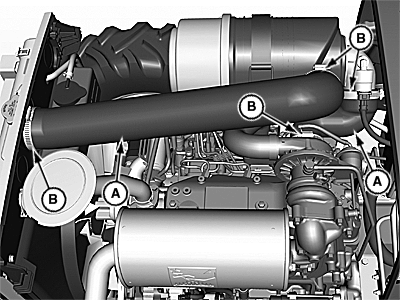

   LV19356-UN-11OCT13

   4049 Engine


   LV19542-UN-28OCT13

   4066 Engine

   A - Hose

   B - Clamp (4 used)

   Check air intake hose (A).

---




4. Tighten clamp (B) if necessary.

5. Lower hood.
