Removing and Installing Side Panels

Removing

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Raise hood.

3.
   LV18538-UN-01AUG13

   Left Side Shown; Right Side Is Similar


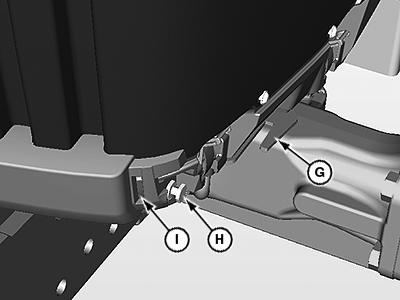

   LV18539-UN-01AUG13

   A - Bolt

   B - Alignment Pins

   C - Mounting Tab

   D - Mounting Hook

   E - Front Mounting Tab

   F - Side Panel

   G - Mounting Hook

   H - Mounting Pin

   I - Front Mounting Slot

   Remove bolt (A) and nut.

---




4. Tilt side panel (F) away from machine and slide forward.

Installing

1. Align holes on rear of panel with alignment pins (B).

2. Align the side panel front mounting tab (E) with front mounting slot (I). mounting hook (D) with mounting pin (H) and align mounting tab (C) with mounting hook (G) on machine.

3. Slide side panel, then tilt into place.

4. Install bolt (A) and nut to secure side panel (F).

5. Lower hood.
