Removing and Installing Hood Cowl

LV17953-UN-04JUN13

LV18547-UN-01AUG13

A - Hood Cowl Latch

B - Hood Cowl

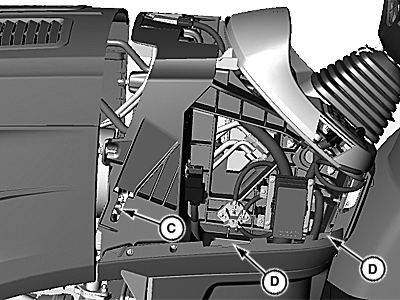

C - Alignment Slots

D - Alignment Slots

Removal

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Open hood.

3. Pull hood cowl latch (A) out on both sides.

4. Slide hood cowl (B) up.

Installation

1. Align hood cowl tabs with alignment slots (C and D).

2. Gently slide cowl into position.

3. Pull hood cowl latch out and release.

4. Close hood.
