Cleaning Hood Vents

IMPORTANT: Avoid damage! Hood vents must be kept free of debris and obstruction to allow for adequate air flow.

LV19091
LV19091-UN-13SEP13

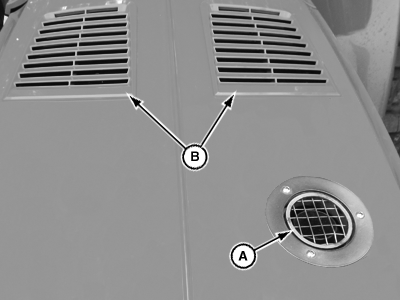

A - Exhaust Vent

B - Engine Hood Vent

  1. Park machine safely. (See Parking Safely in Safety section.)

  2. Allow engine to cool.

  3. Raise hood.

  4. Check exhaust vent (A) and engine hood vent (B) for obstruction or debris.

  5. Check vent area for any obstructions.

  6. Lower hood.

KN52281,10049B7-19-20130913
