Operator Station Controls—OOS

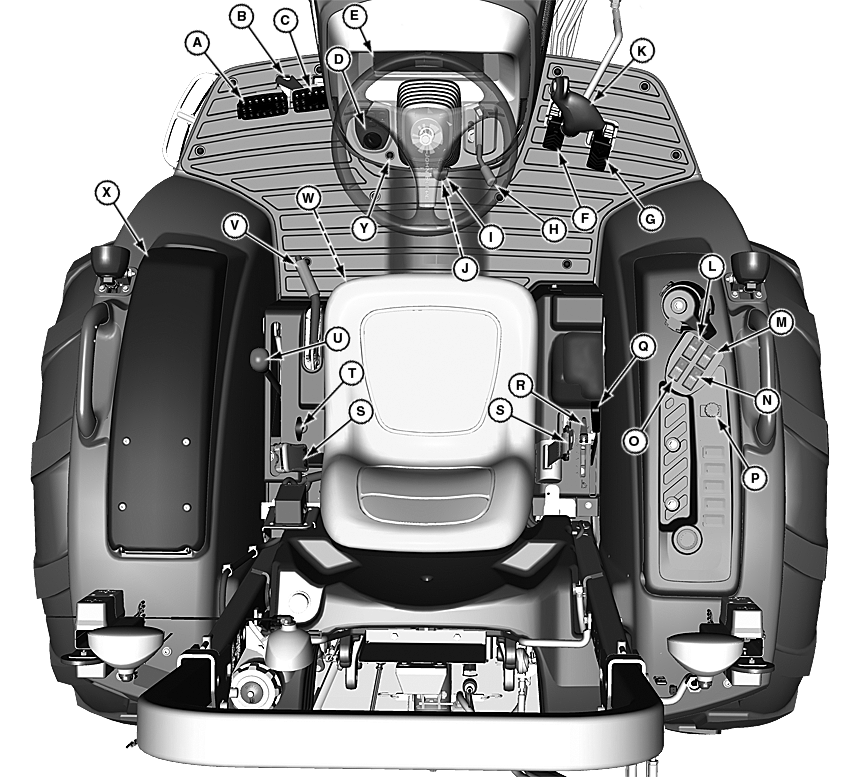

LV19336-UN-23OCT13

M Series—All Controls Shown May Not Be Installed On Your Machine

A - Left Turn Brake Pedal

B - Brake Pedal Lock

C - Right Turn Brake Pedal

D - Dash Panel Module

E - Instrument Cluster

F - Forward Travel Pedal

G - Reverse Travel Pedal

H - Engine Speed Hand Throttle

I - Tilt Steering Control Lever

J - Key Switch

K - Dual Selective Control Valve (SCV) Lever

L - Cruise Control

M - Hydraulic Oil Temperature Indicator

N - 5th Valve Continuous Flow Switch

O - 3rd SCV Continuous Flow Switch

P - PTO Engagement Switch

Q - Rockshaft Control Lever

R - Rockshaft Depth Stop

S - Seat Belt

T - Mechanical Front Wheel Drive (MFWD) Lever

U - Transmission Range Shift Lever

V - Park Brake Lever

W - Differential Lock Lever

X - Operator’s Manual Holder

Y - Horn

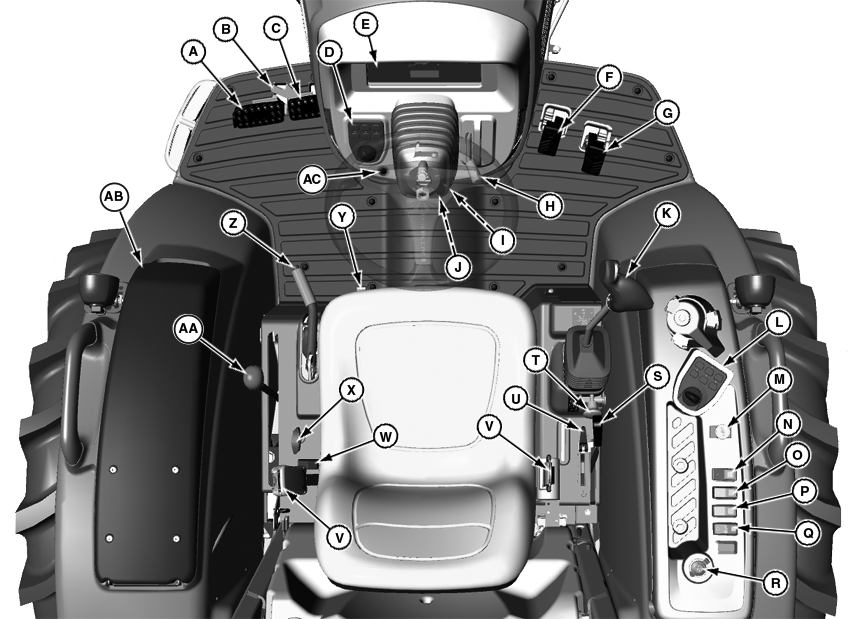

LV19306-UN-23OCT13

R Series—All Controls Shown May Not Be Installed On Your Machine

A - Left Turn Brake Pedal

B - Brake Pedal Lock

C - Right Turn Brake Pedal

D - Dash Panel Module

E - Instrument Cluster

F - Forward Travel Pedal

G - Reverse Travel Pedal

H - Engine Speed Hand Throttle

I - Tilt Steering Control Lever

J - Key Switch

K - Dual Selective Control Valve (SCV) Lever

L - RH Console Control

M - PTO Engagement Switch

N - Hydraulic Oil Temperature Indicator

O - 5th Valve Continuous Flow Switch

P - 3rd SCV Continuous Flow Switch

Q - Rear Diverter or Rockshaft Switch

R - Power Port

S - Rockshaft Control Knob

T - SCV Lever Lock

U - Rockshaft Depth Stop

V - Seat Belt

W - Hitch Assist Enable Switch

X - Mechanical Front Wheel Drive (MFWD) Lever

Y - Differential Lock Lever

Z - Park Brake Lever

AA - Transmission Range Shift Lever

AB - Operator’s Manual Holder

AC - Horn
