Adjusting Seat

CAUTION: To avoid accidents, adjust seat before driving.

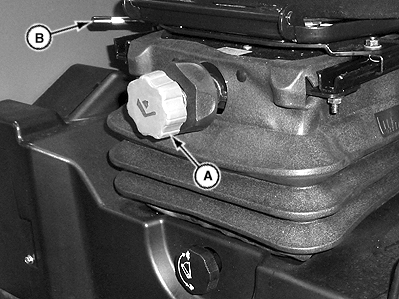

Seat Adjustment—OOS

LV19315-UN-08OCT13

A - Weight Adjustment Knob

B - Forward/Backward Adjustment Lever

Adjust to each operator's personal preference; there are two available seat adjustments:

Weight: While seated with the engine running, turn weight adjustment knob (A) clockwise to increase air pressure. Turn weight adjustment knob counterclockwise to decrease seat pressure.

Forward or Backward: Pull forward/backward adjustment lever (B) forward to move seat to desired position.

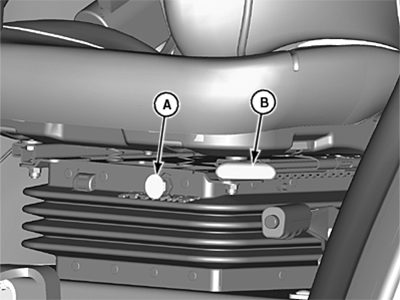

Standard Seat Adjustment—Cab

LV17825-UN-20MAY13

A - Weight Adjustment Knob

B - Forward/Backward Adjustment Lever

Adjust to each operator's personal preference; there are two available seat adjustments:

Weight: While seated with the engine running, pull weight adjustment knob (A) out to increase air pressure. Push adjustment knob in to decrease seat pressure. Release knob to lock in position.

Forward or Backward: Lift forward/backward adjustment lever (B) up to move seat to desired position.
