Safety Signs—OOS

CAUTION:

LV18310-UN-12JUL13

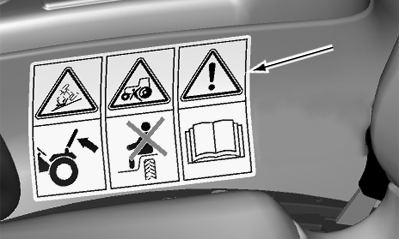

Warning Label— LVU13286

LV19316-UN-08OCT13

Use Foldable ROPS and Seat Belt Properly.

If this machine is equipped with a foldable roll-over protective structure (ROPS), keep the ROPS in the fully extended and locked position.

USE a seat belt when you operate with a ROPS in the fully extended position.

- Hold the latch and pull the seat belt across the body.

- Insert the latch into the buckle. Listen for a click.

- Tug on the seat belt to make sure the belt is securely fastened.

- Snug the seat belt across the hips.

If this machine is operated with the ROPS folded (e.g., to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded. Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.

CAUTION: Avoid falling and being struck.

Keep riders off. Riders on machine are subject to injury such as being struck by foreign objects and being thrown off of the machine. Riders also obstruct the operator's view resulting in the machine being operated in an unsafe manner.

CAUTION: Avoid the risk of injury.

This Operator’s Manual contains important information necessary for safe machine operation and explanation of safety signs. Carefully observe all safety rules to avoid accidents.

LV18898-UN-28AUG13

Warning Label—T302221

LV18897-UN-03SEP13

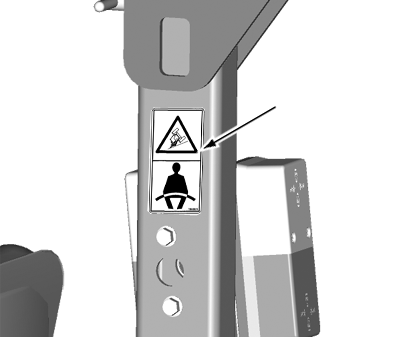

RH Side of Rops

CAUTION: Avoid crushing injury or death during rollover.

Use Foldable ROPS and Seat Belt Properly.

• If this machine is equipped with a roll-over protective structure (ROPS). USE a seat belt when you operate with a ROPS.

- Hold the latch and pull the seat belt across the body.

- Insert the latch into the buckle. Listen for a click.

- Tug on the seat belt latch to make sure the belt is securely fastened.

- Snug the seat belt across the hips.

• If this machine is operated with the ROPS folded (e.g., to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded.

• Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.

CAUTION:

LV18314-UN-12JUL13

Warning Label—LVU23360

LV18894-UN-03SEP13

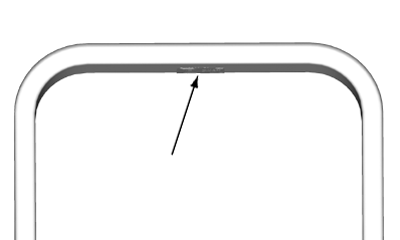

Top of ROPS

Hands or fingers may be pinched between folded ROPS and rear implements.

Do not place hands or fingers near foldable ROPS when implements are raised.

CAUTION:

LV19346-UN-11OCT13

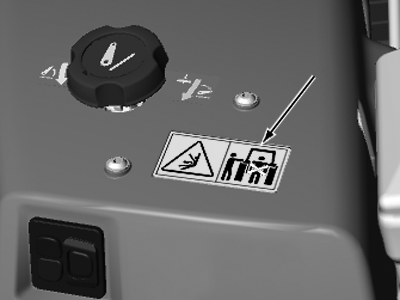

Caution Label—L65071 (If Equipped)

LV19347-UN-11OCT13

When attaching or detaching an implement, there is a risk of crushing in the area between the tractor and implement. When attaching the hitch, stay clear of the area where the three-point hitch rises and do not permit anyone to be in the area.

CAUTION:

LV19459-UN-22OCT13

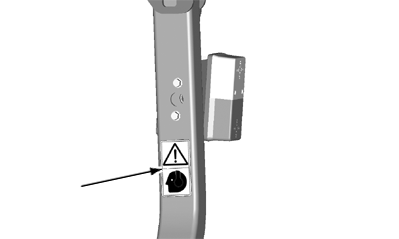

SU20277

LV19439-UN-22OCT13

• Prolonged exposure to loud noises can cause impairment or loss of hearing.
• Wear suitable hearing protection.
