Replacing Headlight Bulb

IMPORTANT: Avoid damage! Do not touch glass headlight bulb with bare skin. Contact with bare skin could cause bulb to fail prematurely. Use gloves or a cloth when inspecting or replacing the bulb.

1. Park machine safely. (See Parking Safely in Safety Section.)

2. Raise hood.

3.

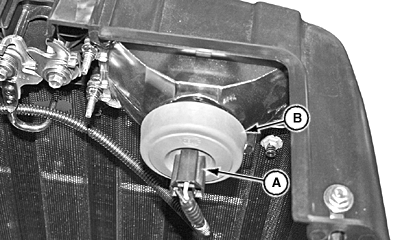

   LV18298-UN-12JUL13

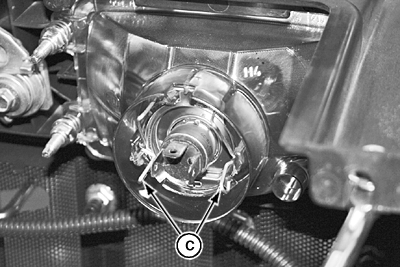

   LV18299-UN-12JUL13

   A - Headlight Bulb

   B - Rubber Boot

   C - Clips

   Disconnect harness (A) from light.

---




4. Remove rubber boot (B) from light.

   NOTE: Do not touch the new bulb with bare hands. Use a clean cloth to install, and hold the bulb only by the metal base.

5. Press inward on clips (C) to release bulb.

6. Remove bulb from light, install new bulb, and secure with clips (C).

7. Install rubber boot and connect harness to light.

8. Check operation of headlights.

9. Lower hood.
