Checking Engine Oil Level

IMPORTANT: Avoid damage! Failure to check the oil level regularly could lead to serious engine problems if oil level is low:

• Check oil level before operating.
• Check oil level when the engine is cold and not running.
• Keep level between the Full and the Add marks.
• Shut off engine before adding oil.

NOTE: Check engine oil when engine is cold. If engine is warm, allow to cool for at least 5 minutes before checking oil.

Check engine oil with machine parked on a level surface.

1. Park machine safely. (See Parking Safely in the Safety section.)

2. IMPORTANT: Avoid damage! Dirt and contamination can enter engine when checking oil level. Clean area around dipstick before loosening or removing.

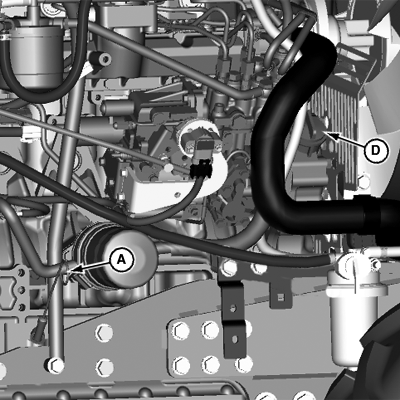

   LV19378-UN-14OCT13

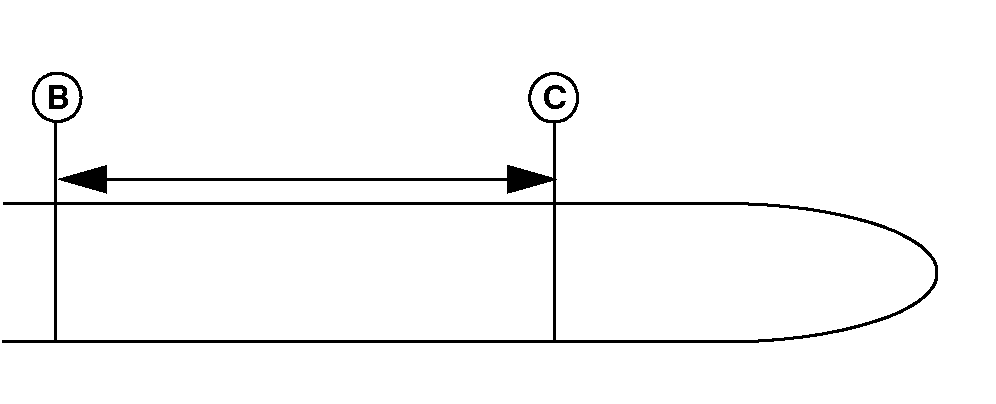

   LVAL38308-UN-21AUG12

   A - Dipstick

   B - Full

   C - Add

   D - Oil Fill Cap

   Remove dipstick (A), located at the right side of the engine. Wipe with a clean cloth.

---




3. Install dipstick.

4. Remove dipstick.

5. Check oil level on dipstick. Oil level should be between levels (B and C) on dipstick.

6. If oil level is low:

   1. Raise hood.

   2. Remove right side panel (See Removing and Installing Side Panels in Miscellaneous section).

   3. Remove oil fill cap (D).

   4. Add recommended engine oil until level is within operating range on dipstick. Do not overfill.

   5. Install dipstick.

7. If oil is above level (B) on dipstick, drain to proper level.

8. Install right side panel.

9. Lower hood.
