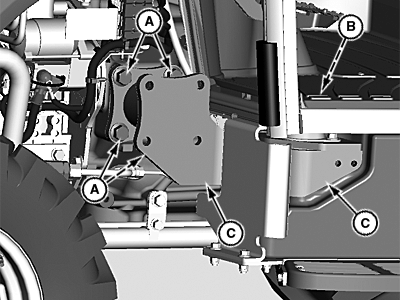

Front Loader Installation

LV18994
LV18994-UN-04SEP13

Left Side Shown

A - M16 x 2 x 40 Flange Head Cap Screw (4 Used)

B - M16 x 2 x 100 Flange Head Cap Screw (1 Used)

C - Mounting Frame

NOTE: The following procedures apply to both right and left-hand sides.

  1. Park machine safely. (See Parking Safely in Safety section.)

  2. Raise hood.

  3. Install mounting frame (C) as shown.

  4. Fasten with four M16 x 2 x 40 flange head cap screws (A) and one M16 x 2 x 100 flange head cap screws (B) and nut.

  5. Tighten mounting hardware and torque to 310 N·m (229 lb.-ft.).

  6. Repeat on opposite side.
