Replacing Light Bulbs (Tractor with Cab)

Dome Light Bulb

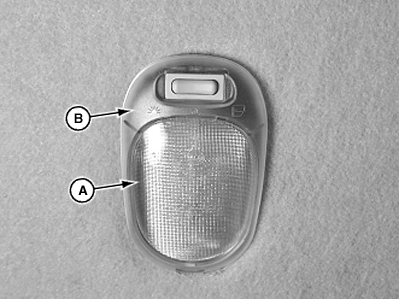

LV17766-UN-14MAY13

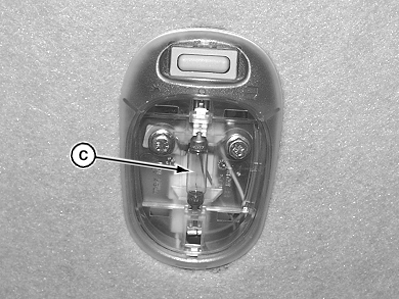

LV17767-UN-14MAY13

A - Cover

B - Bulb Housing

C - Bulb

1. Remove cover (A) from bulb housing (B) using a screwdriver.

2. Pull bulb (C) from socket

3. Install new bulb and cover.

Rotary Beacon Light Bulb

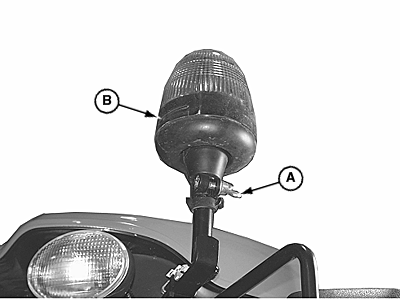

LV18929-UN-29AUG13

LV18930-UN-29AUG13

A - Wing Nut

B - Beacon Light Assembly

C - Rubber Cap

D - Mounting Shaft

1. Loosen wing nut (A) and remove rotary beacon light assembly (B).

2. Install rubber cap (C) on mounting shaft (D).

3.

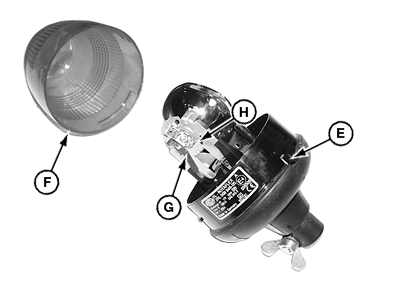

   LV18931-UN-29AUG13

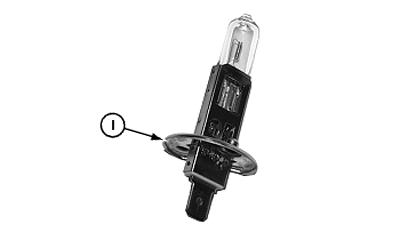

   LV18932-UN-29AUG13

   E - Lens Tab

   F - Lens

   G - Tab

   H - Retaining Spring

   I - Light Bulb

   Depress lens tab (E) and rotate lens (F) counterclockwise to remove.

---




4. Pull tab (G) away from bulb.

5. Unlatch retaining spring (H) and remove light bulb (I).

6. Install new bulb in reverse order of removal.

Tail Light Bulb

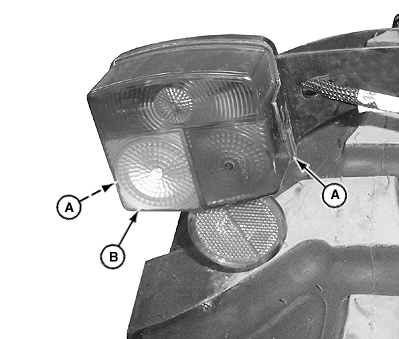

LV19407-UN-17OCT13

A - Lens Clip

B - Lens Cover

1. Open lens clip (A).

2. Remove lens cover (B).

3. Pull bulb straight out.

4. Install new bulb in housing.

5. Install cover.

Warning Light Bulb

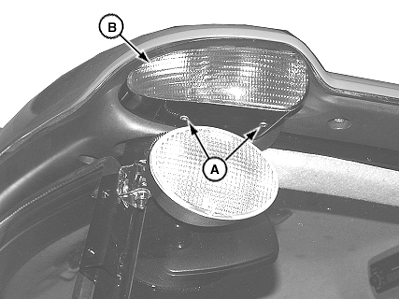

LV17774-UN-14MAY13

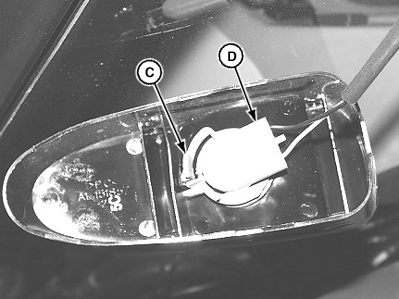

LV17775-UN-14MAY13

A - Screws

B - Lens Assembly

C - Tab

D - Socket

NOTE: Bulb replacement procedures for front and rear warning lights are similar. On rear warning light, bracket for the work light is also removed when removing two screws. Front right side shown.

1. Remove two hex socket head screws (A) and lens assembly (B) from cab roof panel.

2. Push in tab (C) and rotate socket (D) counterclockwise to remove from housing. Install new bulb into socket.

3. Install socket and rotate clockwise to lock tab into position.

4. Install housing with two hex socket head screws.

Work Light Bulb

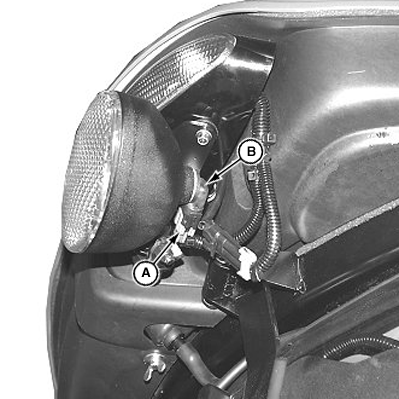

LV17776-UN-14MAY13

A - Harness Connector

B - Bulb Base

NOTE: Bulb replacement procedures for front and rear work lights and optional auxiliary work lights are the same. Rear left side shown.

1. Disconnect wiring harness connector (A).

2. Rotate bulb base (B) counterclockwise and remove from housing.

3. Install new bulb into housing and rotate bulb base clockwise to install.

4. Connect wiring harness connector.
