Using Instrument Panel

LV17507
LV17507-UN-29APR13

LV17524
LV17524-UN-29APR13

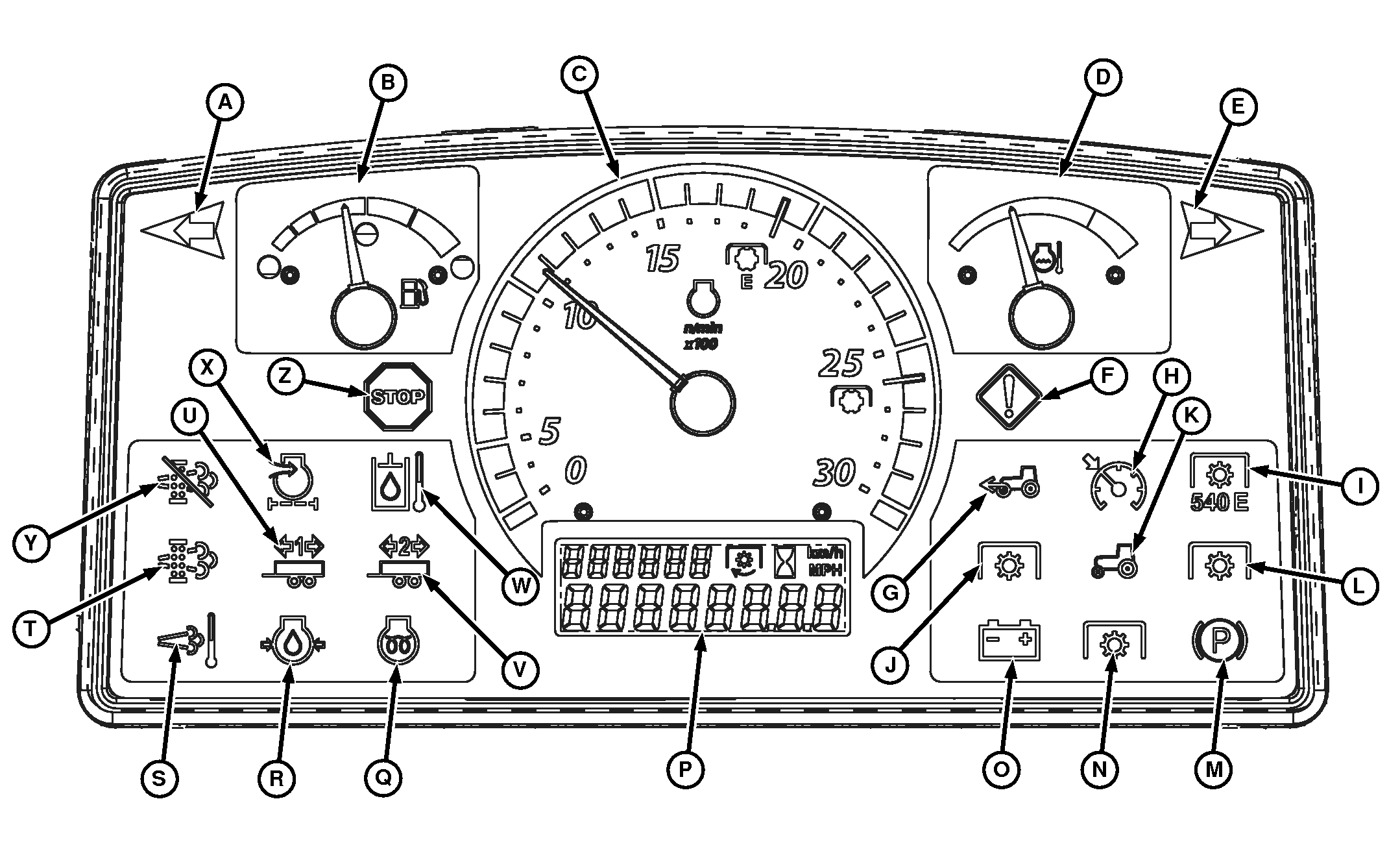

A—Left Turn Signal/Warning Flasher Indicator Light—Flashes when left turn signal switch is depressed or when hazard light switch is depressed.

B—Fuel Gauge—Shows the amount of fuel in the fuel tank ( R models only).

C—Tachometer—Shows engine speed in 100s. Example: If indicator is pointing at 20, engine speed is 2000 rpm.

ItemMeasurementSpecification
Engine Idle
Low IdleSpeed950 ± 25 rpm
RatedSpeed2600 rpm
High IdleSpeed2750 ± 50 rpm

D—Engine Coolant Temperature Gauge—Indicates temperature of cooling system. If gauge needle reaches red range, engine is overheating and engine will derate.

If engine is overheated, remove load on machine immediately. Reduce engine to idle speed and allow engine to cool. Stop engine. Check coolant level in overflow bottle and check for air flow blockage to radiator. If coolant level is correct and needle stays in red range after cleaning grille, stop engine.

E—Right Turn Signal/Warning Flasher Indicator Light—Flashes when right turn signal switch is depressed or when hazard light switch is depressed.

F—Service Alert Indicator—Illuminates when a malfunction occurs (review error message in information display). If necessary, have John Deere dealer diagnose machine.

G—Front Wheel Drive Indicator—Illuminates when MFWD is engaged (R models only).

H—Cruise Control Light—Illuminates when cruise control is engaged (if equipped).

I—Rear 540E PTO—Illuminates when the PTO is in the 540E mode and the PTO is on.

J—Not Used

K—PTO Indicator Light—Illuminates when rear PTO is engaged.

L—PTO Indicator Light—Illuminates when rear PTO is engaged.

M—Park Brake Light—Illuminates when ignition key is in the run position and park brake is locked.

N—Not Used

O—Alternator/Battery Charging Light—Illuminates when ignition key is in the run position and engine is not running. If light turns on while engine is running, alternator is not charging battery. Move engine speed control lever to full throttle position. Stop engine if light remains on.

P—Information Display—Displays speedometer, hour meter, PTO hour, PTO speed, regen information and diagnostic trouble codes (if active).

Q—Engine Glow Plug Indicator Light—Illuminates when ignition key is in ON position and engine glow plugs are being energized. Glow plugs are energized whenever starter is engaged (4066 Model). Illuminates when operator pushes in key switch (4049 model).

R—Engine Oil Pressure Light—Illuminates when ignition key is in the run position and the engine is not running. If this light turns on while engine is running, engine oil pressure is too low. Stop engine.

S—High Exhaust Temperature Indicator—Illuminates when an active DPF filter cleaning is being performed (4066 model only).

T—Exhaust Filter Cleaning Indicator—Illuminates when soot levels in the filter are high and exhaust filter cleaning is needed (4066 model only).

U—Trailer 1 Indicator—Starts flashing when trailer turn signal or hazard warning lights are switched on (if equipped).

V—Trailer 2 Indicator—Starts flashing when trailer turn signal or hazard warning lights are switched on (if equipped).

W—Hydraulic Oil Temperature Light—Not Used.

X—Engine Air Cleaner Restriction Indicator—Illuminates when air cleaner element is clogged (clean or replace element). If necessary, have John Deere dealer diagnose machine (R models only).

Y—Not Used

Z—Stop Indicator—Illuminates when a serious malfunction occurs. SHUT OFF engine IMMEDIATELY and determine cause (review error message in information display). If necessary, have a John Deere dealer diagnose machine.

AA—Machine Information Display—When in diagnostic mode, display shows name of control unit that is experiencing fault.

AB—PTO Icon—Illuminates when PTO is operating and PTO speed is displayed in the vehicle information display.

AC—Hour Meter Icon—Illuminates when engine hours are being displayed on information display.

AD—Machine Information Display—Shows machine wheel speed, engine hours, PTO speed, and diagnostic information.


Adjusting Instrument Panel Backlighting

  1. Press and hold the display mode switch for approximately 4 seconds.

  2. The display mode screen should read “rELEAS”, then “NIGHT”.

  3. Press the display mode switch again to accept.

  4. Press the left arrow switch to toggle to the second digit on the instrument panel.

  5. Press the right arrow to toggle to desired illumination.

    NOTE: The range for the illumination is from 1—99.

  6. Press the left arrow switch to toggle to the third digit on the instrument panel.

  7. Press the right arrow to toggle to desired illumination.

  8. Press the display mode switch again to exit.
